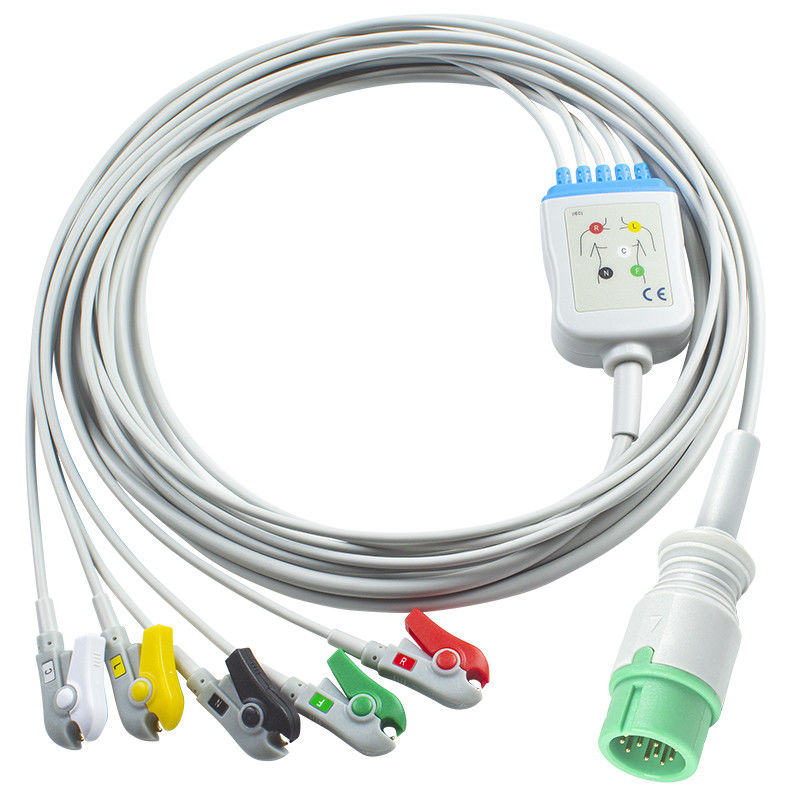

5 Lead TPU Direct-Connect ECG Cable Compatible with Comen
Product Details:
| Place of Origin: | China |
| Brand Name: | BESTMED&OEM |
| Certification: | CE&ISO13485 |
| Model Number: | BCY5-41IG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs per bag |
|---|---|
| Price: | 1-20usd |
| Packaging Details: | 1pcs per PE bag |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000 pcs per month |
|
Detail Information |
|||
| Color: | Grey | Material: | TPU |
|---|---|---|---|
| Lead: | 5 Lead | Patient End: | Snap / Pinch |

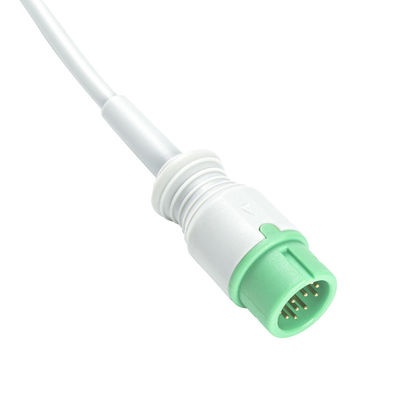

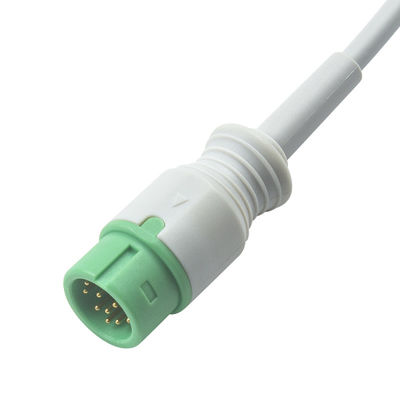

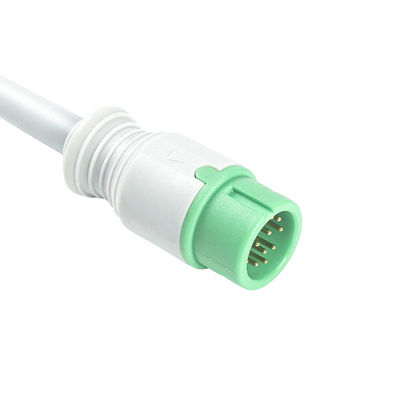

| Connector Distal: | 12-pin,Green Connector | Lead Color Coding: | AHA / IEC |
| Cable Of Trunck Cable: | 2.5m 5.0 Diameter | Cable Of Leadwires: | 1m 3.0 Diameter |
| Compatibility: | For Comen C100, C100A, C21, C30, C50, C70, C90 | ||
| Highlight: | 5 Lead ECG Cable,Comen ECG Cable,Direct-Connect ECG Cable |
||
Product Description
Compatible 5Lead Comen Compatible Direct-Connect ECG Cable.
BestMed--- Patient Monitoring & Diagnostic Cables ...
Features:
(1)Anti-defibrillation:
Defibrilation protector can be built by requirement
(2) ECG Cables Lead wires:
There are copper wire and tinsel wire for your selection.
(3)Lead wire connectors:
Feature customised overmolding your logo/mark by design requirement. There are snap/stud, clip/pinch/grabber, DIN, and banana design for connecting medical electrode. For Holter or portable device, We can have you compact design of medical electrode connectors.
1. Product Name:
Compatible 5Lead Comen Compatible Direct-Connect ECG Cable.
2. Compatibility:
|
Manufacturer |
Model |
|
Compatible for Comen |
C100, C100A, C21, C30, C50, C70, C90, NC10, NC12, NC19, NC3, NC5, NC8 |
| Compatible for Medexcel | MD50 |
3. Technical Parameters
Cable: 5040TPU light grey, 2.5M Trunk cable, 1M lead cables
Connector: nylon ABS
Pin: copper plated with gold

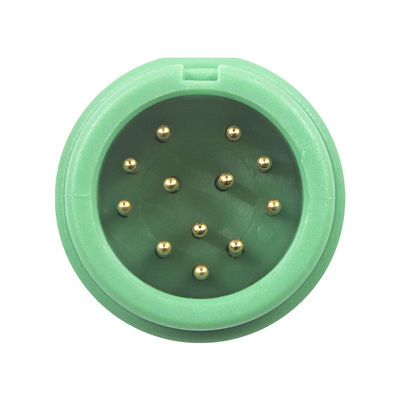

Connector: 11 Pin

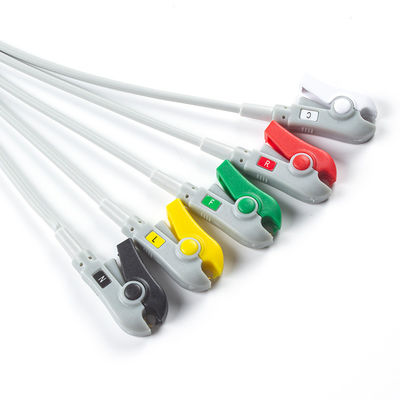

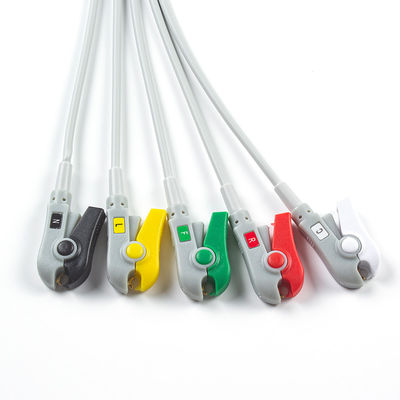

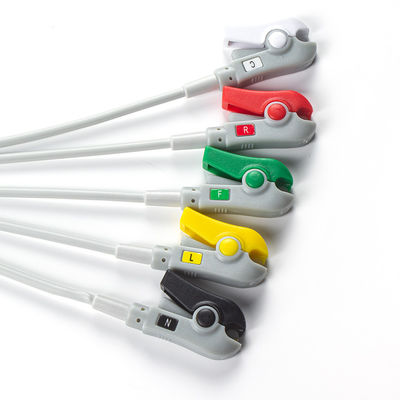

Patient End: Snap or Grabber
Standard: AHA or IEC
4. Other Models
| Part Number | Type |
| BCY3-41IG | IEC Grabber |
| BCY3-41AG | AHA Grabber |
| BCY3-41IS | IEC Snap |
| BCY3-41IG | IEC Grabber |
5. Company Product :
Our main business
1. Kinds of Spo2 Sensors for different brands,
2. Spo2 sensor extension cable,
3. Disposable spo2 sensor,
4. ECG cables with lead wires,
5. EKG cables and lead wires
6. Temperature probe,
7. IBP transducers and cable,
8. NIBP cuffs and hose,
9. ECG and EKG electrodes.
10. Fetal monitor TOCO/US Probe
11. ETCO2 sensor
6. Company Introduction
Shenzhen Best Electronics Co.,Ltd (HongKong Best Medical Group Co.,Ltd) is located in Shenzhen, founded in 2010. We are a professional manufacturer and exporter which specializes in Reusable SpO2 Sensor, Disposable SpO2 Sensor, SpO2 Extension Cable, ECG cable, EKG cable, IBP cable and Disposable pressure transducer, NIBP cuff & tube,Temperature Probe, semi-finished SpO2/ECG cables, SpO2/ECG/EKG/redial and different types monitor's OEM & ODM projects services.
We have advanced production processing equipment and excellent design team to ensure the quality of product. Our products exports to overseas with good reputation.We have both legal production certifications and accuracy test equipment.Most of our products have passed CE Certification and ISO 13485 .
7. Warranty & after-sale service
|
Reusable Spo2 Sensor |
12 months |
|
Spo2 Adapter Cable |
6 months |
|
ECG Cable and Leadwires |
6 months |
|
EKG Cable and Leadwires |
6 months |
|
IBP Cable |
6 months |
|
NIBP Cuff |
6 months |
|
Temperature Probe |
6 months |
